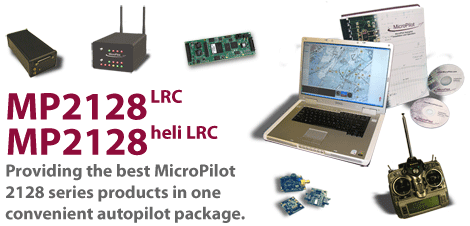

Equipped with full airside and groundside UAV system
components, the MP2128LRC is MicroPilot's premium UAV autopilot
package. "LRC" stands for "long range communication," which refers to
this product's most significant benefit, an integrated, redundant, long-range
data communication link allowing greater distance and flexibility for
your UAV system. The LRC ground unit uses standard, off-the-shelf radio
modems. It adds RC control information to the existing GCS datalink
and a second redundant datalink, which reduces possible failure modes.
 |
| |
|
| Size Matters
|
The MP2128LRC
airside unit features the MP2128g autopilot, world-renowned
for its small size and weight. |
| Redundancy
= Reliability |
|
|
A glimpse inside the LRC ground
station reveals the redundant radio modems that provide high
reliability.
HORIZONmp's Datalog Viewer
allows you to analyze flight performance and get your UAV in
the air faster.
LRC's small, low-weight but rugged
aluminum enclosure protects sensitive electronics and is convenient
to install in a variety of airframes.
MPJoystick functions provide long
range manual control for versatile flight management.
|
- The LRC's 1-watt data radio modem
provides reliable communications for telemetry and GCS-originated
control at a range of up to 50km
- Fly-by-radio modem capability lets
you manually pilot your UAV to a range of 50 km and is compatible
with off-the-shelf JR and Futaba transmitters
- Dual radio modem design allows for
two distinct frequencies for manual control due to RF interference
- Redundant microprocessors provide
manual control even in the event of a complete autopilot
failure
- The LRC's small, low-weight but rugged
aluminum enclosure protects sensitive electronics and is
convenient to install in a variety of airframes
- By preventing interference with other
UAV subsystems, the aluminum enclosure provides optimum
EMI/RFI protection that simplifies integration
- With three control modes including
autopilot, manually piloted and emergency direct servo override,
you can be confident that your UAV will perform in all scenarios.
Automatic switch between manually piloted and emergency
direct servo mode allows instant recovery.
- In the event of both autopilot and
communications failure, a failsafe watchdog timer activates
the parachute.
- The LRC's high current drivers simplify
on/off control of onboard devices such as lights and cameras.
- Integrating the data radio modem,
ADC converters, and high current drivers into a single package
dramatically simplifies your wiring harness, reducing possible
failure modes.
- Aviation grade connectors integrated
into package.
View a drawing of how the MP2128LRC
works.
|
|
