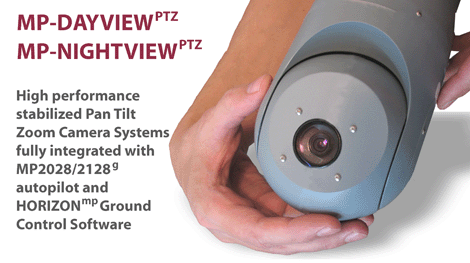

MicroPilot's stabilized payload cameras, high performance stabilized Pan Tilt Zoom observation systems featuring interchangeable thermal imaging or daylight channel cameras, are fully integrated with MicroPilot's MP2028^g or MP2128^g autopilot and HORIZON^mp Ground Control Software. These systems provide high resolution and sensitivity, are light-weight with built-in testing capability and easily interface with your UAV. When combined with your MicroPilot autopilot and software, these systems provide you with plug-and-play camera centric operation.

Exceptional Imaging Performance Standard and infrared imaging capability	This camera is a single vendor solution to your autopilot and imaging requirements. It simplifies the integration process and minimizes time to market. Benefits include: A two axis gimbal stabilizes the video camera in yaw/roll and elevation providing a stable image even at high zoom factors. A high resolution color CCD camera capable of 800K pixels, 25x optical zoom and 1.0VP-P composite video output give you exceptional day imaging capability with the MP-DAYVIEWPTZ. The cameras operate on a single power source and consume only 3 watts. A FLIR sensor operating in the 8-12mm spectral range, 50mm germanium lens, 320x240 resolution, sensitivity greater than 85 degrees mK and a frame rate of 30Hz in the MP-NIGHTVIEWPTZ give you crisp image results under night conditions.
Camera Centric Operation       Convenient, intuitive package with maximum flexibility	The MP-DAY/NIGHTVIEWPTZ comes fully integrated with your choice of MicroPilot's MP2028g or MP2128g autopilot and integrates simply with your UAV system: The camera's light weight (camera and autopilot less than 1kg), compact size and low power consumption make it ideal for installing in a variety of miniature UAV systems. With RS-232/PWM communicaion capability, this product easily integrates with your MP2028g or MP2128g-equipped UAV. The stabilized gimbal assembly is mounted through a mechanical interface that can be configured to suit specific UAV requirements. The MP-DAYVIEWPTZ and MP-NIGHTVIEWPTZ cameras are field interchangeable for maximum flexibility. PAL and NTSC versions are available. When used in conjunction with HORIZONmp this system allows camera positioning, pointing, orbiting and fly-by camera.
